TPD-1￡￡

Group 1, group 2 optional (with instantaneous)

72×72×75

68×68

65

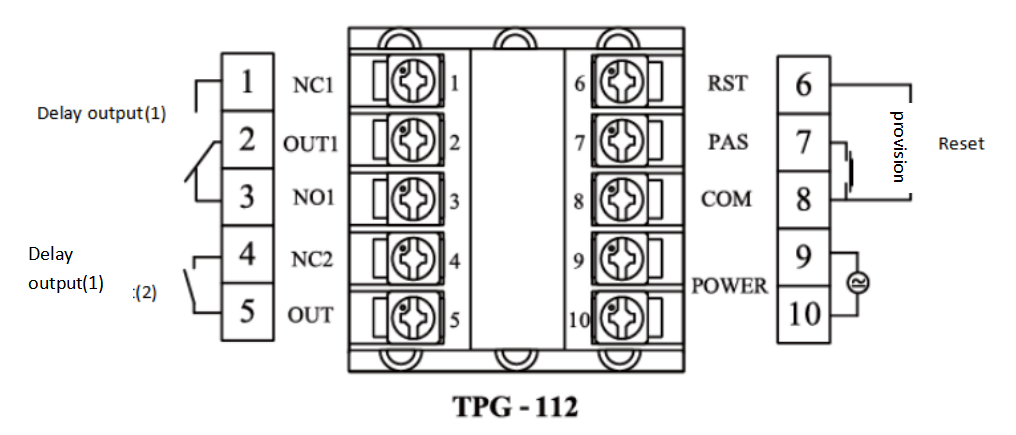

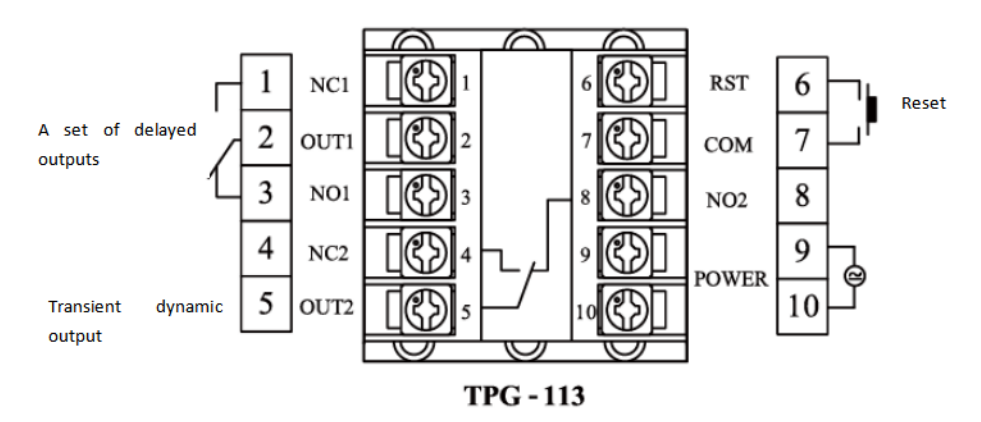

TPG-1￡￡

Group 1 (with instantaneous), group 2 optional

48×48×86

45×45

78

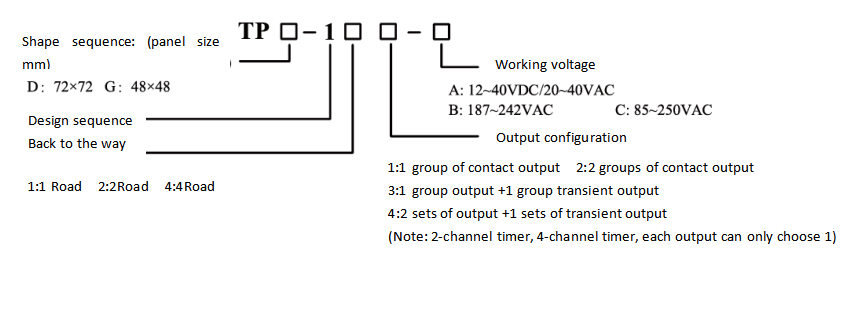

Code

Delay rangeDelay range

0 model

Delayed pull in(T1 timing )

0

0.01~99.99s

1 model

Delayed release (T2 timing)

1

0.1~99.99s

2 model

Delayed T1 pull in,Release after T2 delay, end

2

0~9999s

3 model

Release after T1 delay, Delayed T2 pull in,end

3

0.01~99.99m

4 model

Delayed T1 pull in,Release after T2 delay,,Repeated cycle

4

0.1~99.99m

5 model

Release after T1 delay, Delayed T2 pull in, Repeated cycle

5

0~9999m

6

0.01~99.99h

7

0.1~999.9h

8

0~9999h

Timing resolution

10ms

Terminal to suspend(PAS

、COM PS-ON)

Pause signal pulse width ≥20ms

NPN contactless signal(0V≤VL<1V,2.5≤VH≤5V)

Timing accuracy

±0.3%+50ms

Temporary way

The counter display value remains unchanged during pause

Ambient temperature and humidity

0-50°C

Set parameter timing value power-off code protection time

≥10 years

Relative humidity

≤95%（No condensation）

Reset ( zero clearing) mode

Reset display value, control output reset

（1）Reset panel zero key (only in timing state)

（2）Terminal reset（PST、COM PS-ON)；Reset signal pulse width≥20ms；NPN contactless signal 0V≤VL<1V,2.5≤VH≤5V)

（3）Power-off reset interval≥0.5s

Key to set software lock：Parameters, set values can be modified, not modified or partially modified
